Sadev ST82-17 TRANSVERSE

Beschrijving

ST82-17 TRANSVERSE

The flagship of the transverse 2WD range, the ST82-17 is loaded with the latest technology designed for turbocharged engines such as 1.6L and 2.0L turbo. Benefiting from all SADEV’s experience, it combines optimised architecture with a small footprint and a low weight. Incorporating all the latest innovations such as paddle-shift and externally adjustable preload, the ST82-17 will prove a formidable solution for your future projects.

TECHNICAL SPECS

  • 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection (semi-auto optional)
  • Wide range of final drives available
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Specific input shaft
  • Limited slip differential (low friction optional)
  • Ramp and plate system – 3 discs type
  • Preload made by compression springs
  • Wide range of ramp plates available
  • Contactless gear position sensor
  • Contactless flat shift sensor
  • Splash lubrication system
  • Oil pump integrated
  • Oil suction screen
  • Painted AS7G aluminum casings
  • Case joint faces sealed with O’rings
  • Weight (input shaft included) : 38 kg – 83 lbs

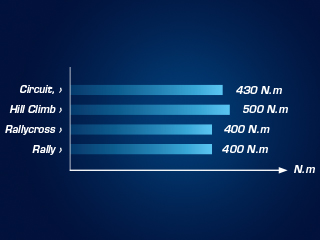

applicationeng320x240__st8217_01102018

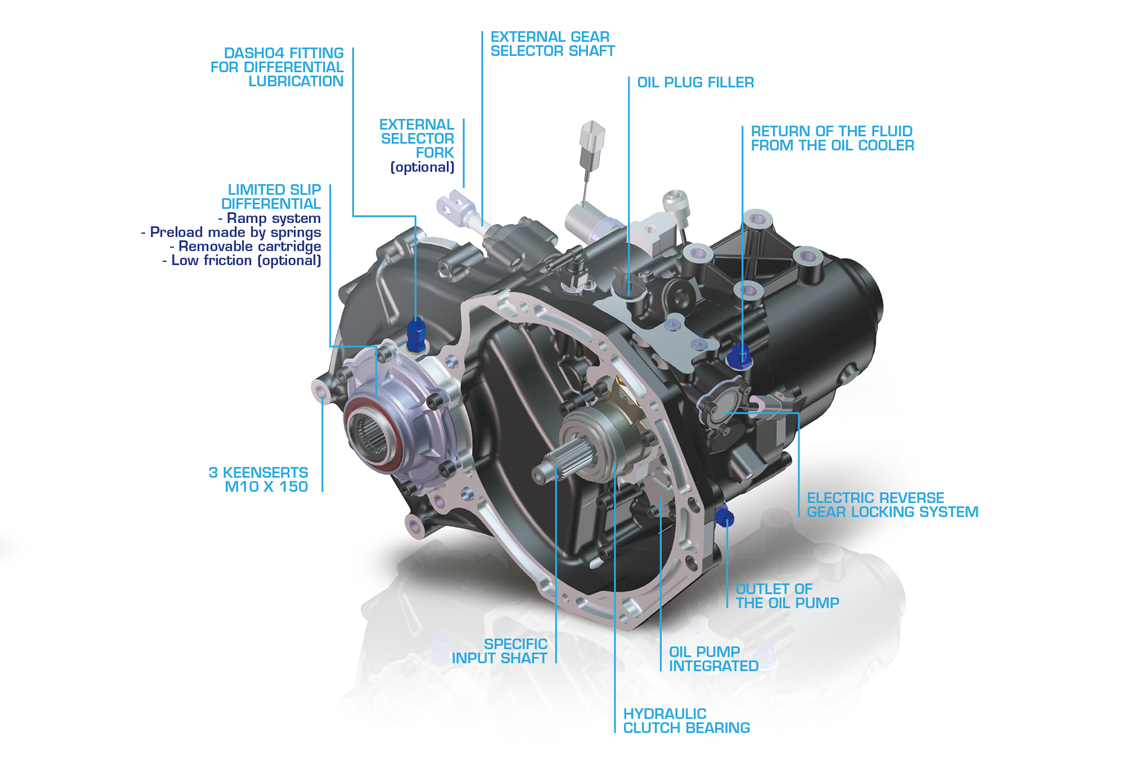

imgdetail2eng1140x760px_st8217_01102018

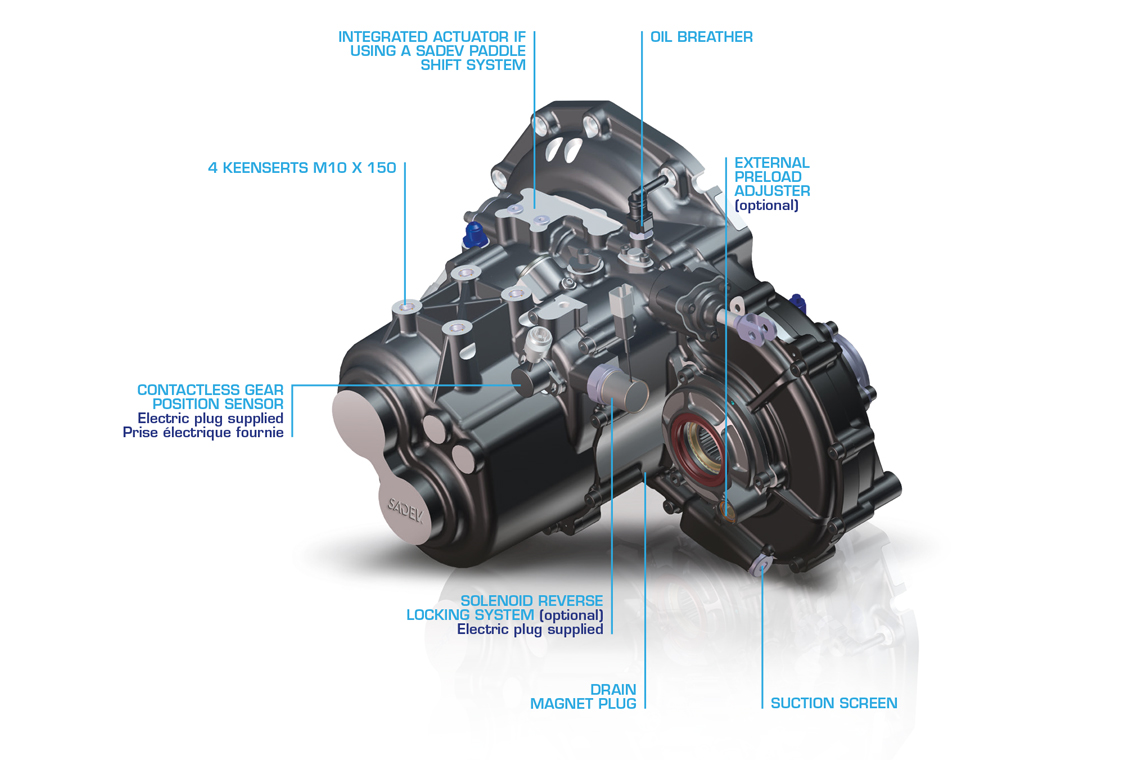

imgdetail1eng1140x760px_st8217_01102018
